- Accurate Digital Technology
- JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
LAPC (Load Adaptive Phase Calibration)
High-speed Silent Hybrid Power Supply
Battery Driven Clock Generator
High-rigidity Metal Double Chassis
- Noiseless Signal Technology
- Digital Noise Isolation Architecture
Optimally Activated Circuit System
- Technics Definitive Design
- High-rigidity Cabinet
Three-section Configuration
- FTC Output Power
- 70 W + 70 W (1 kHz, T.H.D. 0.5 %, 8 Ω, 20 kHz LPF)
140 W + 140 W (1 kHz, T.H.D. 0.5 %, 4 Ω, 20 kHz LPF)
- Input Sensitivity / Input Impedance
- LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV / 47 kΩ
- Frequency Response
- LINE 5 Hz – 80 kHz (-3 dB, 8 Ω),
PHONO (MM) 20 Hz – 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω),
DIGITAL 5 Hz – 90 kHz (-3 dB, 8 Ω)
- Load Impedance
- 4 – 16 Ω

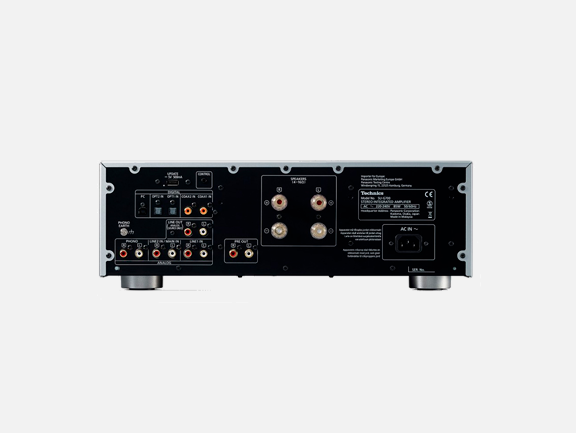

- Analogue Input Terminal
- LINE x 2 (LINE1 IN, LINE2 IN / MAIN IN) , PHONO (MM) x 1
- Digital Input Terminal
- Coaxial Digital x 2, Optical Digital x 2, USB-B (PC)
- Analogue Output Terminal
- PRE OUT x 1, LINE OUT x 1 (ANALOGUE SOURCE ONLY)
- Headphone Output
- Yes
- USB-DAC (USB-B)
- USB Audio Class 2.0, Asynchronous Mode
- Support Codec
-
DSDYes (2.8224 MHz, 5.6448 MHz, 11.2896 MHz)PCMYes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
- Power Supply
- AC120 V, 60 Hz
- Power Consumption
- 85 W
- Dimensions (W x H x D)
- 430 x 148 x 428 mm
(16 15/16 x 5 13/16 x 16 27/32 in.)
- Weight
- Approx. 12.3 kg
(Approx. 27.2 lbs)
- Accessories

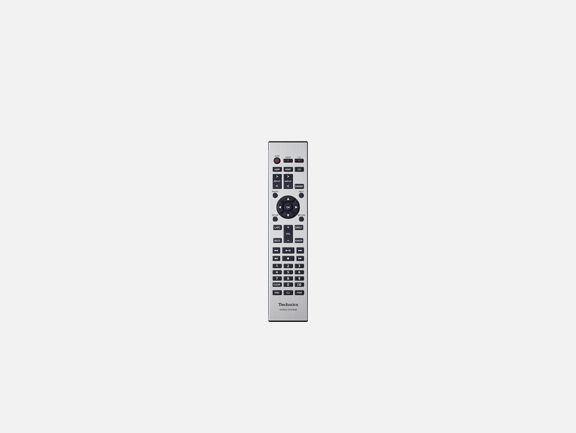

- Remote Control, AC Cord, Owner’s Manual
-
