ADVANCEMENT OF DIGITAL AMP TECHNOLOGY
Technics has newly developed ADCT (Active Distortion Cancelling Technology), in addition to the proprietary technologies that maximise digital amps’ advantages, such as LAPC and JENO. The ADCT realises further enrichment of sound quality by eliminating distortion generated in the power stage by speaker’s counter electromotive force and power supply voltage drop.
ADVANCEMENT OF POWER SUPPLY
The new switching power supply system, Advanced Speed Silent Power Supply, has successfully improved the S/N ratio. Furthermore, four independent power supply units provided for different circuit blocks realise superb separation and dynamic sound reproduction. What’s more, the power devices incorporate low-resistance GaN (gallium nitride).
TECHNICS’ NEW PROPOSAL: PHONO INPUT
There are still many analogue record enthusiasts, and they form an important market segment for Technics. The SU-R1000 is equipped with an Intelligent Phono EQ, which utilises digital technology to achieve accurate equaliser curve and delivers high sound quality by improving the crosstalk of the cartridge and enhancing the frequency characteristic determined by the matching of the cartridge and phono equaliser.
Accurate Digital Technology
-
JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
LAPC (Load Adaptive Phase Calibration)
Advanced Speed Silent Power Supply
Battery Driven Clock Generator
Noiseless Signal Technology
Advanced Speed Silent Power Supply
Advancement of Power Supply
Technics Definitive Design
-
High-rigidity Cabinet
Three-section Configuration
FTC Output Power
-
150W + 150W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF ),
300W + 300W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF)
Input Sensitivity / Input Impedance
-
LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV / 47 kΩ, PHONO(MC) 300uV /100Ω
Frequency Response
-
LINE 5 Hz-80 kHz (-3 dB, 8 Ω),
PHONO (MM) 20 Hz – 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω)
DIGITAL 5 Hz – 80 kHz (-3 dB, 8 Ω)
Load Impedance
-
4 Ω-16 Ω

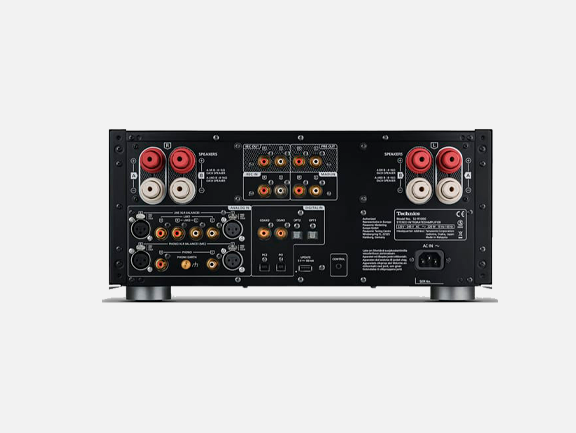

Analogue Input Terminal
-
LINE x 2 (LINE 1, LINE2), LINE XLR BALANCED x1, PHONO (MM/MC) x1, PHONO XLR BALANCED(MC) x1, MAIN IN x1, REC IN x1
Digital Input Terminal
-
Optical digital x2 (OPT 1, OPT 2) , Coaxial digital x2(COAX 1, COAX 2), USB-B x2 (PC 1, PC 2)
Analogue Output Terminal
-
PRE OUTx1, REC OUT x1
Headphone Output
-
Yes, Stereo Φ6.3mm
support Codec
-
USB 2.0 high-speed ,USB Audio Class 2.0, Asynchronous mode
Support Codec
-
PCM
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz* *ASIO Native mode only)
-
Power Supply
-
AC 120 V ,60 Hz
Power Consumption
-
220 W
Dimensions (W x H x D)
-
430 mm x 191 mm x 459 mm
16-15/16 x 7-17/32 x 18-3/32 inch
Weight
-
Approx. 22.8 kg
Approx. 50.3lbs
Accessories
-
Remote Control, Calibration Record, AC Cord, Owner’s Manual
